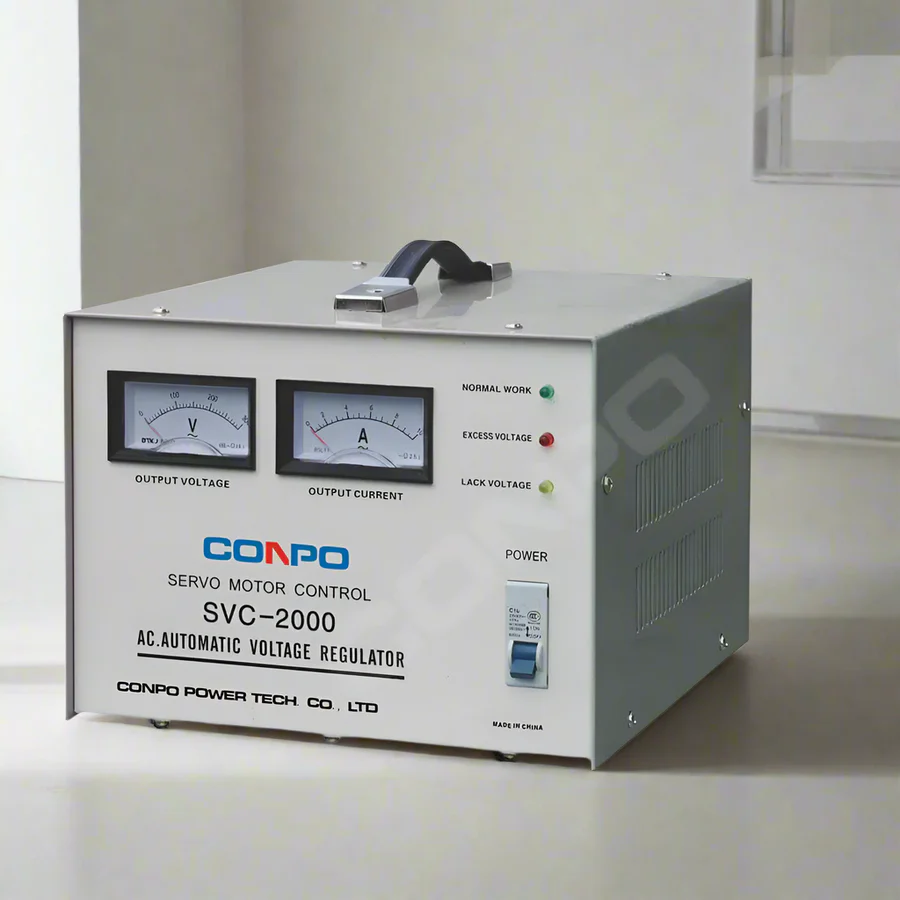

Conpo Single Phase Servo-Type AC Automatic Voltage Regulator 2.0kVA - SVC-2000VA

Product Full Description

• Rated power : 2000VA/1600W
• Phase No. : 1Phase(L-N-G)
• Input voltage : 220V (110V, 120V, 130V, 230V, 240V system or other voltage system can be customized)
• Range : 160~250V(-26%, +13%) (other input range can be customized)
• Output voltage : 220V(stabilized) (110V, 120V, 130V, 230V, 240V system or other voltage system can be customized)
• Accuracy : +/-2.5%
• Frequency : 50Hz/60Hz
• Power factor(PF) : 0.8
• Efficiency : ≥90%
• Response time : ≤1S(outside voltage varies 10%)
• Insulation resistance : ≥2MΩ
• Electrical strength : 1500V/min.
• Overload : Double rated current, for one min.
• Waveform distortion : No additional waveform distortion(Nil)
• General : Working principle
• Servo motor controlled, full automatic voltage-stabilizing
• Display : Analog meter/Digital meter(optional)
• Cooling : Natural
• Protection level : IP21(indoor)
• Working mode : Continuous
• Applied loads
• Arbitrary loads
• Environmental Installation : Indoor IP21
• Ambient temperature : -10?~+40?
• Altitude : <1500m
• Relative humidity : <90%
• Noise :<45dB

The Conpo Single Phase Servo-Type AC Automatic Voltage Regulator (SVC-2000VA) provides 2.0kVA of dependable voltage stabilization, ensuring the safety and efficiency of your appliances. Equipped with a servo motor mechanism and built-in overload protection, this voltage regulator is perfect for homes, offices, and light industrial applications. Maintain steady power supply effortlessly with this reliable solution.
